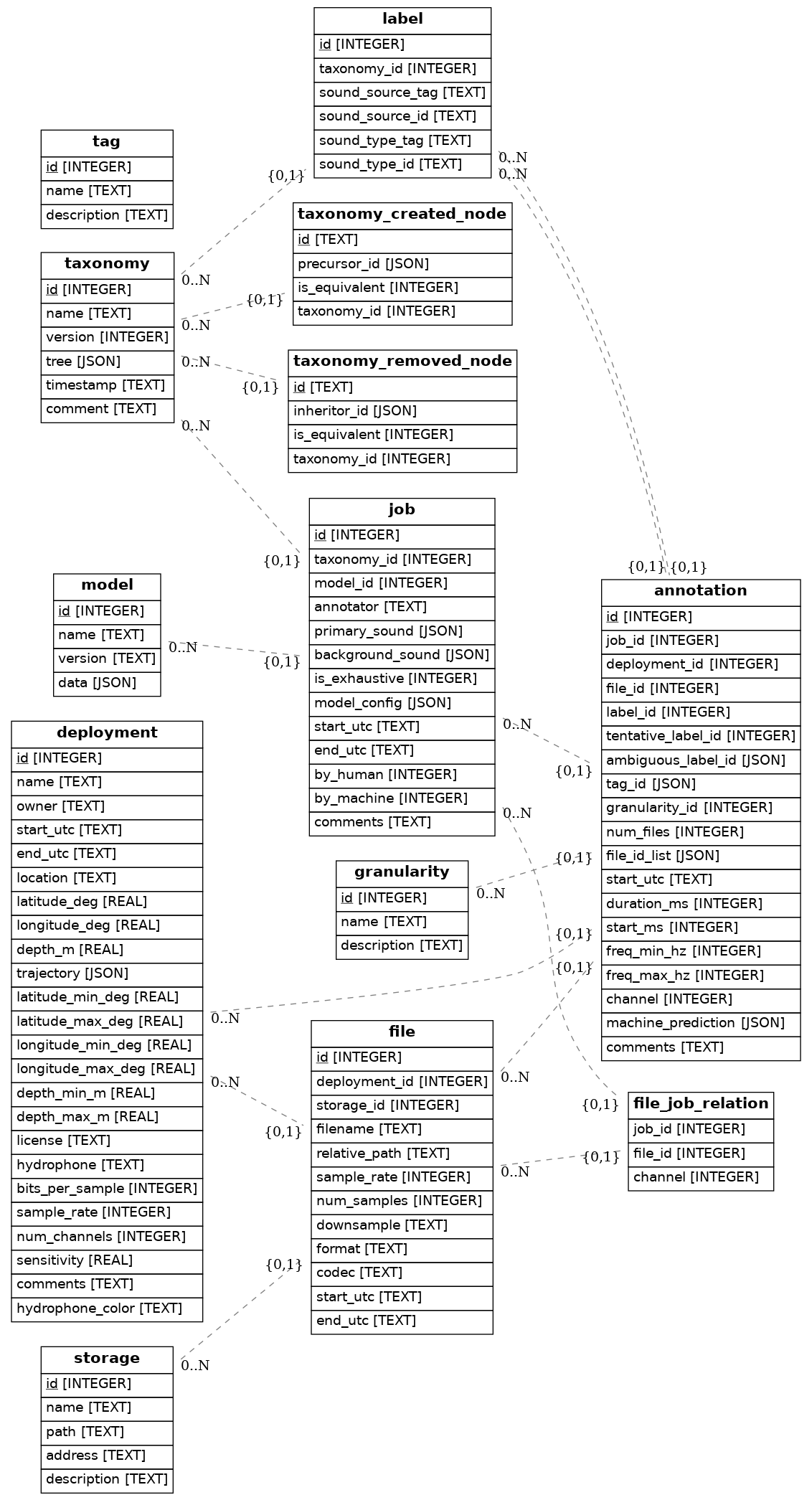

Database Schema
Tables
Table Name |
Description |
|---|---|
annotation |
The primary table containing all the annotations |
job |
Metadata pertinent to the various annotation jobs performed by human analysts or machines |
model |
Models and algorithms employed to process acoustic data |
file |
Audio files |
deployment |
Hydrophone deployments |
taxonomy |
Taxonomies used for annotating the data |
label |
Sound-source and sound-type combinations allowed for labelling sounds |
file_job_relation |
Mapping of many-to-many relationship between audio files and annotation jobs |
Annotation
Name |
Type |
Description |
Example/Allowed Values |
|---|---|---|---|
id |
INTEGER |
Index |
|
job_id |
INTEGER |
Annotation job index |
|
deployment_id |
INTEGER |
Deployment index |
|
file_id |
INTEGER |
Audio file index |
|
label_id |
INTEGER |
Label index of confident source/type assignment |
|
tentative_label_id |
INTEGER |
Label index of tentative source/type assignment |
|
num_files |
INTEGER |
Number of audio files spanned by the annotation |
typically 1 |
file_id_list |
JSON |
List of audio file indices (only relevant when num_files > 1) |
[3, 17] |
start_utc |
TEXT |
UTC start time in ISO8601 format (YYYY-MM-DD HH:MM:SS.SSS) |
|
duration_ms |
INTEGER |
Duration of the acoustic signal in milliseconds |
|
start_ms |
INTEGER |
Start time of acoustic signal in milliseconds relative to the beginning of the audio file |
|
freq_min_hz |
INTEGER |
Lower frequency bound of acoustic signal in Hz |
110 |
freq_max_hz |
INTEGER |
Upper frequency bound of acoustic signal in Hz |
320 |
channel |
INTEGER |
Stereo channel number |
0,1,… |
granularity |
TEXT |
Granularity of the annotation |
call,window,batch,file,encounter |
machine_prediction |
JSON |
Model classification scores |
{“class”:[“KW”, “HW”], “score”:[0.8, 0.2]} |
comments |
TEXT |
Additional observations |
